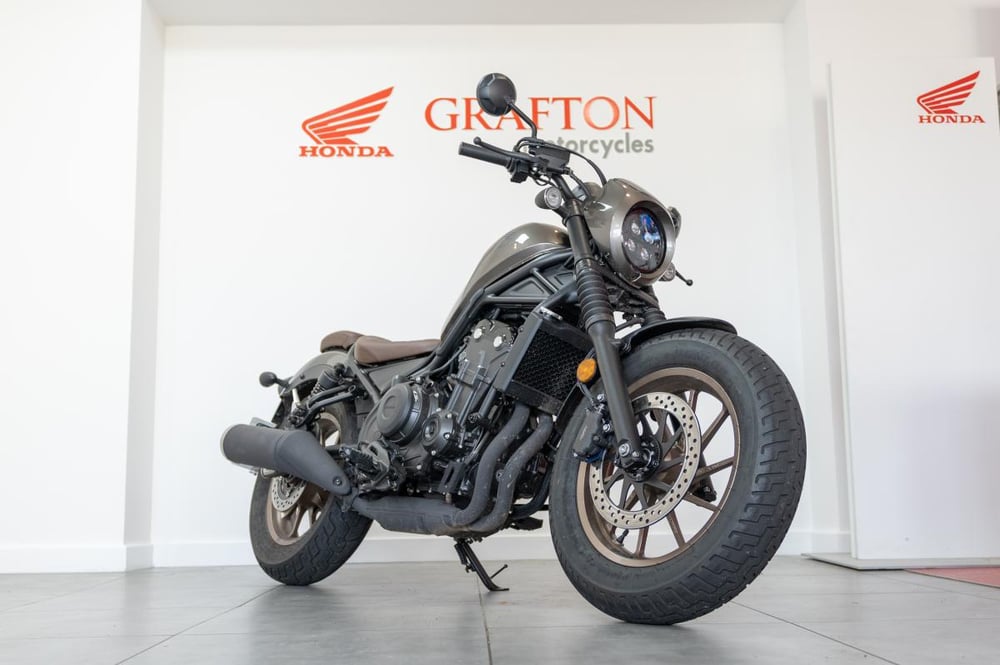

Used Honda CMX500A2P for sale in Milton Keynes

Pre loved Honda Rebel 500 Available at Grafton Motorcycles Milton Keynes



  • 1 Owner

  • DOR 12/12/2024

  • 385 Miles

  • 2 Keys

  • HPi Clear


Engine & Performance




  • 471 cc liquid‑cooled parallel‑twin four‑stroke engine.




  • Bore and stroke of 67.0 mm × 66.8 mm; compression ratio approximately 10.7 : 1.




  • Maximum power around 34 kW (≈ 46 hp) at 8,500 rpm.




  • Maximum torque approximately 43.3 Nm at 6,000 rpm.




  • Six‑speed manual transmission with an assist/slipper clutch to reduce lever effort and smooth down‑shifts.





Chassis, Suspension & Brakes




  • Tubular steel frame designed to be narrow and low‑slung for easier mounting and manoeuvring.




  • Front suspension: 41 mm telescopic fork.




  • Rear suspension: dual shock absorbers (spring preload adjustable) for comfort and rider control.




  • Brakes: front single disc (around 296 mm) and rear single disc (around 240 mm) with dual‑channel ABS as standard.




  • Tyres: front typically 130/90‑16; rear 150/80‑16.





Dimensions & Ergonomics




  • Seat height approximately 690 mm (27.2 inches) — very low for better confidence at stops.




  • Wheelbase around 1,490 mm (58.7 inches).




  • Fuel tank capacity around 11.2 litres in some markets.




  • Curb/ready‑to‑ride weight around 189 kg in EU market spec.




  • Riding position: relaxed and neutral, with mid‑mounted footpegs and slightly outstretched arms to combine cruiser comfort with urban agility.





Styling & Features




  • Bold “bobber”‑inspired styling: clean lines, fat tyres, blacked‑out engine and frame parts.




  • Full LED lighting package (headlight, taillight, turn signals).




  • Digital instrument cluster combining classic round housing with modern LCD display and gear‑position indicator.




  • Removable pillion pad and rear footpegs to customise the bike for solo riding or two‑up as desired.




  • Many genuine accessories available: e.g., rear rack, back‑rest, tank pad, saddle‑bags.




  • The Titanium Metallic (or “Special Edition”) colour scheme often comes with upgraded styling details (for example, headlight cowl, fork gaiters, diamond‑stitch seat) where specified.





Use Case & Appeal




  • A mid‑size cruiser that makes for a good option for riders seeking easy handling, lower seat height, and versatility for both city and highway riding.




  • The assist/slipper clutch and strong low‑rpm torque make it friendly for newer riders but still engaging.




  • The styling and accessory support make it a good platform for personal customisation.




  • The low seat height and neutral ergonomics make the bike accessible and confidence‑inspiring when stopped or manoeuvring at low speed.





GREY, 2024 74 Reg, 385 miles, £4,995.00.

Honda

CMX500A2P

Stock #: 5610
Bike location: Milton Keynes
£4,995
